Description

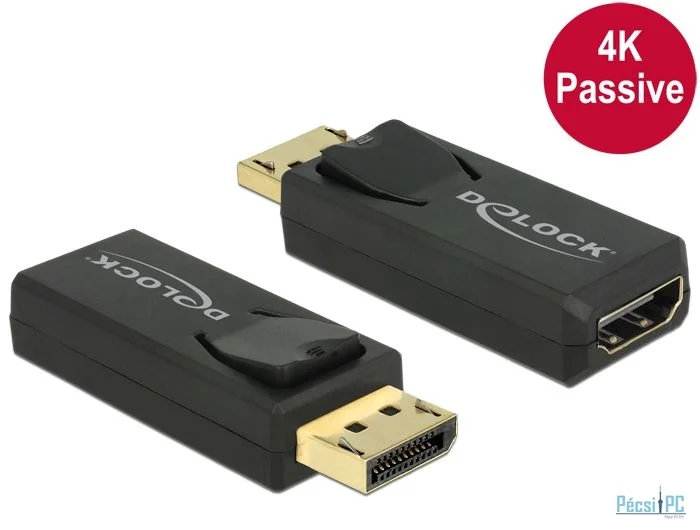

This adapter by Delock enables the connection of an HDMI monitor to the system via a free Displayport interface. The adapter supports a resolution up to 4K Ultra HD at 30 Hz and is backward compatible to Full-HD 1080p.

Specification

• Connectors:

1 x Displayport 20 pin male >

1 x HDMI-A 19 pin female

• Chipset: Parade PS8402A

• Displayport 1.2 and High Speed HDMI specification

• Passive converter (level shifter), suitable only for graphics cards with DP++ output

• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the

connected hardware)

• Supports 3D displays (1080p @ 120 Hz)

• Gold-plated connectors

• Dimensions incl. connector (LxWxH): ca. 62 x 22 x 15 mm

• Colour: black

• OS independent, no driver installation necessary

System requirements

• One free Displayport DP++ female

Package content

• Adapter Displayport to HDMI
